    QR Code 10mA SS304 Security Swing Barrier Gate For Lobby

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-SB03
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    QR Code 10mA SS304 Security Swing Barrier Gate For Lobby

    OEM Logo QR code Security Swing Barrier Gate For Public Lobby


    PRODUCT DESCRIPTION

    SINOMATIC swing barrier Series is a swing barrier with a modular design that realizes fast switching between different readers. And reader installation can be completed by merely pull-out and plug-in. After installing the corresponding readers, it can support multiple verification methods, including RFID, fingerprint, QR code, palm verification and visible light facial recognition. Especially, palm verification and visible light facial recognition can realize touchless entrance control that avoids hands exposing to bacteria and boost public hygienic security.


    Function:


    1. Problem-self-checking function.


    2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.


    3. When power off, arm open automatically and power on again, arm will be held automatically.


    4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.


    5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.


    6. If passenger pass without card read or valid card read, swing barrier will alarm untill passenger get back from the swing barrier and then take a valid card to be read for passing.


    7. Swing barrier is with 485 interface for long-distrance control concern.


    8. Anti-rush function: If there is no open single, arm will be holding tightly.


    9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force.Also it will alarm.


    10. Swing barrier is with standard electrical interface for the integration of various readers and writers.


    11. Swing barrier can count how many passenger has passed and will show it in the LED display (Optional).


    12. Direction display to guide passenger which direction is to go.


    13. Card-reading with memory or without memory function.


    14. Swing barrier can control the population inside in the control of software

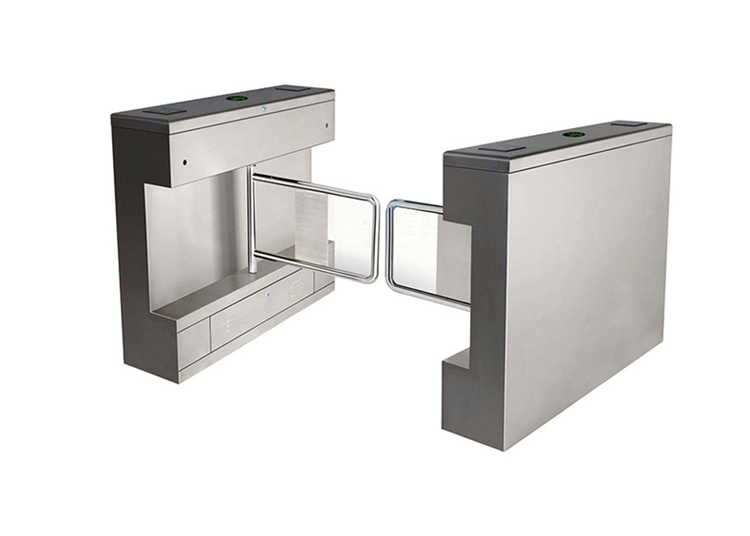

    PRODUCT PHOTO


    Specifications of swing arm barrier:


    Description

    Specification

    Channel width600mm (default)
    Arm lenght530mm (default)

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    30 person per minute

    Gate swing angle

    180 degree

    Gate opening speed

    1s

    Reset time when power on

    3s

    Working temperature

    -20°C~60°C

    PackageWooden box

    Application: Intelligent Vertical Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.


    FQA

    Q1. How about some special design?
    That’s our advantage of design new gate or barrier according to your real situation to make different size, software and features.Video call available during design and communicate in time during this procedure.


    Q2.Do you have agency for after-sales service?
    Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.


    Q3.What time do you need to delivery?
    Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
