    250W 24V Motor Parking Barrier Gate LED Light Advertising Arm

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-BGA1
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A, L/C, D/P
    Supply Ability : 1,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    250W 24V Motor Parking Barrier Gate LED Light Advertising Arm

    Product Overview


    Thank you for purchasing the DC bruhsless motor advertising barrier gate. This product adopts the latest mold design

    technology, mold die-casting manufacturing technology, double-row five tension springs balance design, long spring life,

    good tensile flexibility. Brushless control speed regulation technology, no clutch design, more reliable quality, more

    convenient to use, the movement adopts two-stage worm gear transmission, curved crank arm and three connecting

    rod structure, UP&DOWN is fast and stable. Easy maintenance and long service life.


    Arm type, arm lenght and opertation time


    Arm TypeArm length(L)Operation time(S)Center height (H)
    Advertising arm4.5m8SH=1.04M,Height of arm center above the ground
    3.8m6S
    3m4S

    Technical parameters


    1 Working temperature(motor): -35℃~+85℃

    2 Rated voltage:DC24V

    3 Running speed:3s-10s

    4 Rated current:9.5A

    5 Rated power:250W

    6 No-load speed:2500rpm

    7 Rated speed:1800rpm

    8 Output Power:120N.m

    9 Relative humidity:≤90%

    10 Remote control distance:≤100M(in the open place)

    11 IP Degree:IP44

    12 Max length of arm:4.5M


    Product advantage


    1. 3second to 8 second open/close time adjustable;


    2. Advertising DC brushless motor & 5 million MCBF;


    ​3. 5tension spring balance makes is heavy duty and more durable;


    ​4.Led lights with time swtich ,set a time for light on as you require;


    5. Simplified design, easy installation and maintenance reduces your labor cost;


    6. Fast finishing time for you to become more competitive at your local market :3-5 days for small order;


    7. OEM Brand, Logo, Label available;


    8.1year standard warranty, excellent after-sales service;


    9. 24h*7d at your service to give you best support;

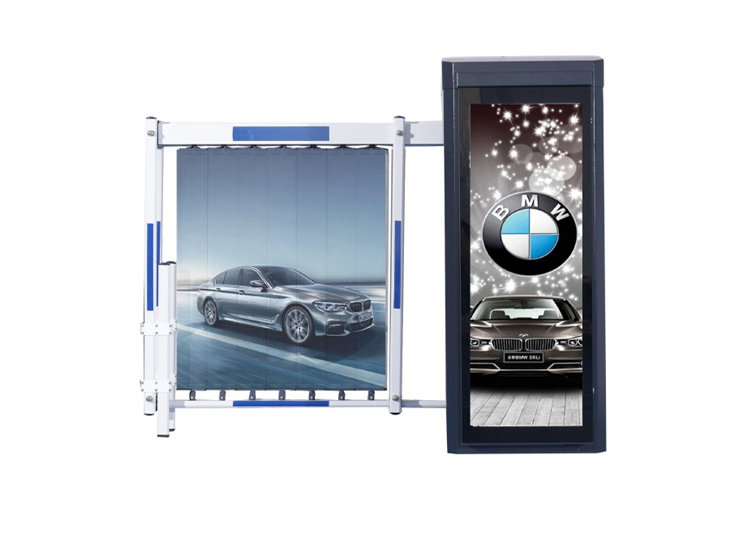

    PRODUCT PHOTO


    PRODUCT SPECIFICATIONS


    NameSINOMATIC DC Advertising Gate Barrier
    Close/Open time3s-8s adjustable
    Arm TypeAdvertising Arm
    Material

    Cold roll plate, 2mm thickness sheet

    3 years without rust, shedding and fading

    Size320*280*935 mm
    Spring And Bearingmore durable, 5 million times through operation testing
    Rating Power200w
    Rating VoltageDC 24V
    Remote Control DistanceUsually more than 30 meters, if there is less obstacles, even 50 meters or more
    Packing Size1020*375*467mm , with seven layers carton case

    inside with air bubble film for protection

    G.W50 KG
    DeliveryBy Sea: big order(more than 100 sets), Cheap, suggested

    By Air: small order(1-15 sets), quick and cheap, suggested

    PaymentSample: full payment

    Order: usually 40% advance deposite, balance before shipment

    Advantages1. Professional Manfacturer for more than 10 years

    2. Mould Production, High Accuracy

    3. Heat Treatment, more durable than normal

    4. Better Service from Professional Work Team

    ApplicationSINOMATIC Advertising Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle while making profit, for parking lot, shopping center, exhibition center, hospitals,airport ,residential,shopping center,et

    PACKAGE


    Packed in bubble wrap firstly, and then reinforced with carton for outer packing.


    Packing list
    NameSpecificationsQuantityRemarks
    Machine coreGood in working1Main part
    Barrier armStraight, folding or fence arm1Optional
    Boom press board1Fixing the boom
    Self-tapoing screwST4*16Fixing the boom
    Self-tapoing screwst3*104Fixing the boom
    Supporting pole1Fupporting the boom
    Expanion boltM16*1504Fixing the case
    Hexagonal Inner ScrewM8*354fixing the case
    Clutch key1clutch device
    Case Key2for case and cover locking
    Balance springAccording to length of barrier arm1for sapre usage
    Remote emitterless than 30m is available1For remote control
    Remote conrol handlesless than 30m is available2For remote control
    Instructionin English1For reference
    RS485 interface1Optional
    Disc1Optional
    Communication Mould1Optional
    Cover head13 years without fading
    Expanion nutM84Fixing the supporting pole
