School University Full Height Turnstile With Face Recognition

SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap School University Full Height Turnstile With Face Recognition from wholesalers

    Buy cheap School University Full Height Turnstile With Face Recognition from wholesalers
    • Buy cheap School University Full Height Turnstile With Face Recognition from wholesalers
    • Buy cheap School University Full Height Turnstile With Face Recognition from wholesalers

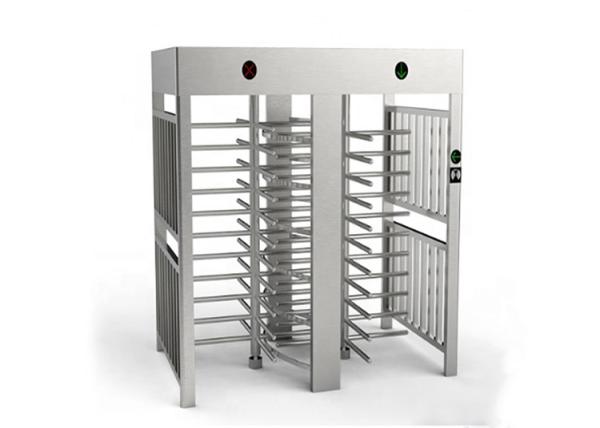

    School University Full Height Turnstile With Face Recognition

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-FHT02
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,00pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    School University Full Height Turnstile With Face Recognition

    PRODUCT DESCRIPTION


    Full height turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition

    device used for staff, provide civilized, orderly access methods; effectively manage the access of staff.

    Can be widely used in some high security places, such as prison, stadium, parking system area, and so on.


    It is extensively use in railway station, banking house, high class club, office, gym, swimming pooletc..


    PRODUCT SPECIFICATION


    Dimension

    Single-channel:1500*1350*2300mm

    Dual-channel:2400*1500*2300mm

    Stainless Steel SpecificationBody: SS304

    Passage width

    About 600mm
    Power SupplyAC110V±10V,60Hz / AC220V±10V,50Hz
    Drive motorDC24V solenoid
    Passing Speed

    30 persons/min

    Input Interface+12V electrical signal or DC impulse signal with width >100ms
    Communication Interfacerelay signal
    Operating Temperature-20°C ~ 60°C
    Related Humility<=95%
    PackageWooden Box

    FEATURES OF SINOMATIC FULL HEGIHT TURNSTILE


    1) Automatically low noise mechanism core equipped, highly cost-performance


    2) Sense positioning, reducing mechanical impact make lifetime longer


    3) Operating efficiency, 1~2 seconds open & close


    4) Lowest Noise : No matter in operating or outside control, Noise control under 30db


    5) Self-checking and Alarm warning for maintainence


    6) Resetting: System cancel authorized pass if passenger delayed pass


    7) Anti-following : prevent illegal passing


    8) Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay


    9) The rotary wings will be locked automatically if the system do not receive IR signal


    10) Multi-passage for variety application demands , cover 99% needs on earth


    11) Programmable signal separate control : pass time,pass speed etc. parameter


    12) RS232/RS485 interface meet all kind of communications or wireless connection


    13) Compatible with IC/ID card reader, fingerprint reader, face recognition devices.


    14) Long-distance management through COMPUTER


    15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm


    PRODUCT PARAMETER


    ITEMSPECIFICATIONS
    Dimensions2300*1370*2300mm
    Cabinet material38 round tube, 1.2mm Mild steel or SS304/316
    Channel width600mm
    Ambient temperature-20 degrees to 60 degrees
    Working environmentindoor and outdoor (outdoor canopy)

    Technical Parameters:

    Input voltage100V~240V
    Driving voltage24V
    Equipment power40W
    Response time0.2S
    Passing speed30 people / min
    Communication distanceLess than 1200m
    Open brake signal inputDry contact
    Switching door timeLess than 1S
