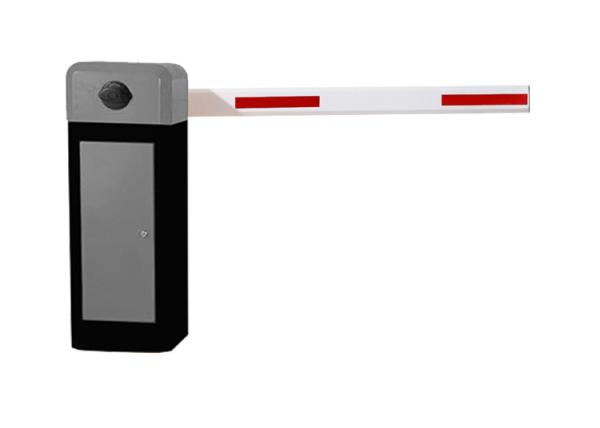

    AC Motor 100% Duty Cycle Automatic Barrier Gate 6m Arm

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-BG102
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A, L/C, D/P
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    AC Motor 100% Duty Cycle Automatic Barrier Gate 6m Arm

    Product description


    This serial barrier gate functions with stable performance and long life-span the specially-designed balance mechanism,

    which makes boom start slowly, run quickly and stop slowly.


    The specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick heat-radiation;

    Intelligent over-heat protection system for driving mechanism, to control motor’s temperature and avoid damaging

    easily during frequent usage.


    Production Series


    Model No. (BG)Open/Close SpeedMax Boom LengthBoom Type
    102-166 sec6mstraight boom
    102-133 sec4.5mstraight boom
    102-111 sec3mstraight boom
    120-266 sec5m90 degree,Articulated boom
    102-233 sec3m90 degree,Articulated boom
    102-366 sec5m180 degree,Articulated boom
    102-333 sec3m180 degree,Articulated boom
    102-466 sec4.5mTwo-level, fence boom
    102-566 sec4mThree-level, fence boom

    Technical Specifications


    Opening/closing time1s, 1.8s, 3s, 6s
    Supply Voltage220V±10%, 110V±10%
    Working Temperature-40℃~+75℃
    Frquency50/60HZ
    Rated power80W
    Relative humidity≤90%
    Remote control distance≥30m
    Net weight55kgs
    Arm Speed1s, 1.8s, 3s, 6s
    Max boom length6 meters

    Components inside the cabinet


    Sensor: The sensor on the bottom of motor. It is using for that if the boom falling down press any other obstacles, the boom will lifted up automatically.


    Motor: AC power motor


    Hall sensor: Connect to Limited switch port of control board, which limited the close/open position. Shock absorber: A gel is used to absorb the pressure of close/open boom


    Spring: Using it to keep balance with boom. For example, the boom changed short opening plastic nuts
    to make spring loosen a little. Otherwise the boom may can’t close totally.


    Functions & Features


    1) Manual realease
    2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
    3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
    4) Motor cooling fan, solving the problem of heat-protection;
    5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
    6) Reversing on obstacle;
    7) Auto-closing;
    8) Support the In frared Photocell for anti-bumping function(optional);
    9) Support the external and internal Vehicle Loop Detector;
    10) Traffic light interface;
    11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
    12) RS485 Communication module (optional).


    FAQ:

    Q: What's the monthly production capacity for barrier gate?

    A: 1000 units.

    Q: What is the warranty for the machine?

    A: 12 months.

    Q: When will you make the delivery?

    A: In general, Regular products: 2-7 days.

    Q: How does your factory control the quality?

    A: Quality controlling from the beginning to the ending.

    Q: What is your MOQ?

    A: Any quantity is acceptable.

    Q: Payment term?

    A: 30% deposit, 70% before delivery
