    Wire Drawing Small Footprint Tripod Turnstiles Door Access Control DC24V

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-TT01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1,000 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    Wire Drawing Small Footprint Tripod Turnstiles Door Access Control DC24V

    Security Semi Automatic Small Footprint Tripod Turnstiles Door For Access Control System


    PRODUCT DESCRIPTION


    Tripod turnstile, also known as three-roller gate, is a kind of channel gate, which is an intelligent control terminal

    device for the entry and exit of the pedestrian passage. It is specially used for gates that require security check

    or control for personnel exits and entries, such as dining halls, hotels, office buildings, museums, stadiums, clubs,

    subways, stations, wharfs, tourist attractions and other places.


    It can effectively control high volume human traffic ( up to 30 person per minutes ) while still maintaining a welcoming

    atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.


    It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit. Widely

    used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.


    Tail gating is a common problem in other brand turnstiles. Multiple users can go through the turnstile with a single flash card.

    This create security loop hole at entrance and defeat the purpose of installing turnstile. There is no purpose to install turnstile

    if any unauthorised user can just follow the authorized user to go into your building without flashing card.


    SN-TT01 tripod turnstile gate solve this problem and can ensure 1 card can only allow 1 person to pass through at a time.


    PRODUCT SPECIFICATIONS


    1. Accessories:outer box 304 #
    2. Product size:480*280*1000mm
    5.Arm length:
    510mm
    6. Traffic direction:one-way traffic / two-way traffic
    7. Opening method:IC / ID card reader, etc.
    8.Opening signal:switch on
    9. Traffic speed:30 people / minute
    10. Input voltage:AC220V ± 10V, 50Hz
    11.Input interface:+ 12V level signal or DC12V pulse with pulse width> 100ms
    12. Communication interface signal:dry contact
    13. Working environment temperature:-20 ºC ~ 70 ºC
    14. Power:30-60W
    15. Service life:not less than 3 million times
    16. Protection level:IP54

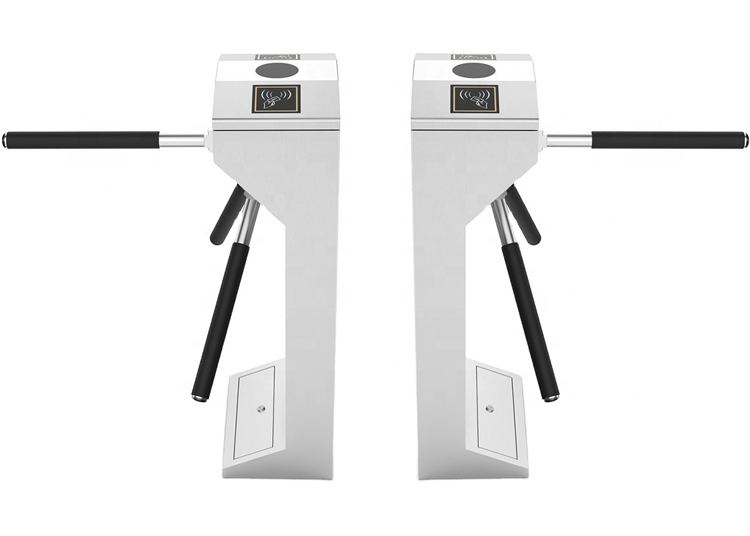

    PRODUCT PHOTO


    FUNCTION AND FEATURES


    1. Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be

    locked automatically


    2. Bi-direction passing or uni-direction


    3. When power off, arm will be dropped automatically


    4. Self-lock function: arm will be locked automatically after passenger passing


    5. LED passing arrow can show direction to indicate passenger to pass


    6. Standard interfaces are convenient for connection with different readers which can send relay signal


    7. Stable running with little noise.


    Applications of Tripod Turnstile Gate:


    304 stainless waist height tripod turnstile gate is suitable for many locations:


    They are optimized economical solution for airport, bus station, metro station, supermarket, police station, factory, colleges,

    commercial building etc.


    Do you provide OEM service?


    Yes, we can offer OEM services as follows:


    1) We can customize barrier gate according to your needs.


    2) We can print your logo on the turnstile, and customize retail box packing and other things you need.
