Professional Factory Car Parking Management System Vehicle Inductive Loop Presence Detector

Product description

This product is an inductive coil type vehicle detector, which is mainly used to detect the presence and passage

of vehicles. Existence mode, filter, automatic sensitivity enhancement, sensitivity level and frequency selection

can be set, with reset function.

Application scope

♦ Parking lot entrances vehicle detection
♦ Parking lot space information acquisition system
♦ Electronic police traffic lights snap shot system
♦ Traffic monitoring system

Installation

The detector must be installed in a convenient weatherproof location as close to the loop as possible. Installation

location must choose to stay away from the heat source, it around other devices must maintain a distance of at

least 10mm (mustn’t fix cling to the cabinet).

A correct loop configuration and detector installation will ensure a successful inductive loop detection system.

Loop of several important parameters include: loop figure, size, and turns, install methods.

(details refers to “Loop installation guide”).

Technicial paramters

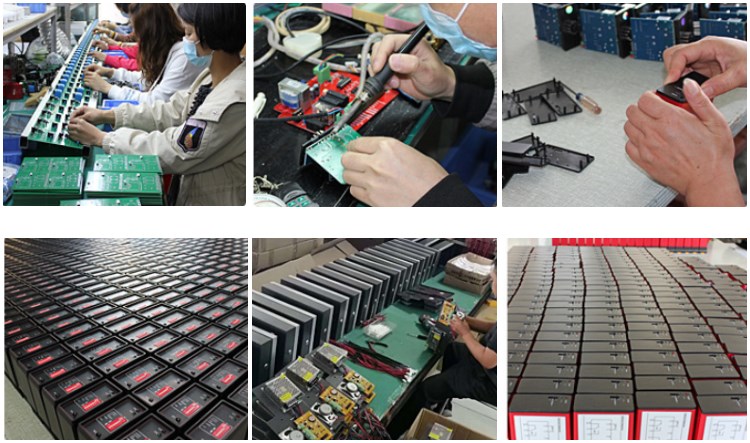

Workshop

Main Features:

♦ Industrial engineering design concept
♦ Standard industrial guide installation
♦ Strong anti-jamming ability and stability
♦ Variety of output interface adapted to different scene
♦ Variety of shape choice meet differentiation demand
♦ High temperature stability
♦ Environment drift automatic compensation function
♦ Coil automatic fault detection function

♦ When the DIP switch is on position or changing the presence output time, Self-detection would be done

♦ ABS align to the pillar which can combine with each other compactly
♦ Presence output time can be adjustable
♦ Work mode can be set by the DIP switch
♦ Pulse output or permanent output can be adjustable

Work Indicator

Detector will enter into the self-calibration condition with the green LED flash, red LED extinguish once on power,

this procession will last 1 second. .the vehicle should not on the loops within the self-calibration. The green LED

will not flash, he red LED extinguish after self-calibration. When the vehicle past over the loop ,the red LED on.

DIP SWITCH and Wire Jumper

DIP1, 2 setting the sensitivity;set the presence output time of relay 1 by DIP3;set the relay2 as presence/pulse

output by DIP4; the output time of presence signal set by DIP5;DIP6set the frequency; jumper wire connect to

the open end, PIN16 connect to the NO of relay 1. Jumper wire connect to the close end, PIN16 connect to the

NC of relay 1.

Work Frequency

User can change the loop's work frequency which can avoid the cross talk by the adjacent loop or environment

frequency. It offers two styles frequency, set by DIP6

Sensitivity Adjustable

The DIP1,DIP2 on the front panel can adjust the sensitivity. If the vehicle has not any response when test it,

the sensitivity should be improved.

Packaging & Shipping

Packaging:Standard Exported Carton/Wooden Package,customized packing is available too,as your wish!

Shipping:Usually 48 Hours After Payment.
