PRODUCT ADVANTAGES

1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it, just connect the 220v(some country 110V) power supply and the protective ground wire to work.

2. Traffic light interface: 2A24v voltage traffic light use.

3. Infrared anti-smashing interface: external infrared anti-radiation device, and the switch signal of the anti-radiation output can be connected.

4. Loop detector interface: support external ground sense. when using an external loop detector, you only need to connect the switch signal output by the loop detector.

5. Parking system interface wire control interface: connect the switch signal from the system to this interface to control the barrier.

6. Starting limit and landing limit signal output: output COM/NO/NC switch signal to the system to inform the current state of the barrier.

7. RS485 or can communication interface: PC software can be used to manage more than 15 barriers.

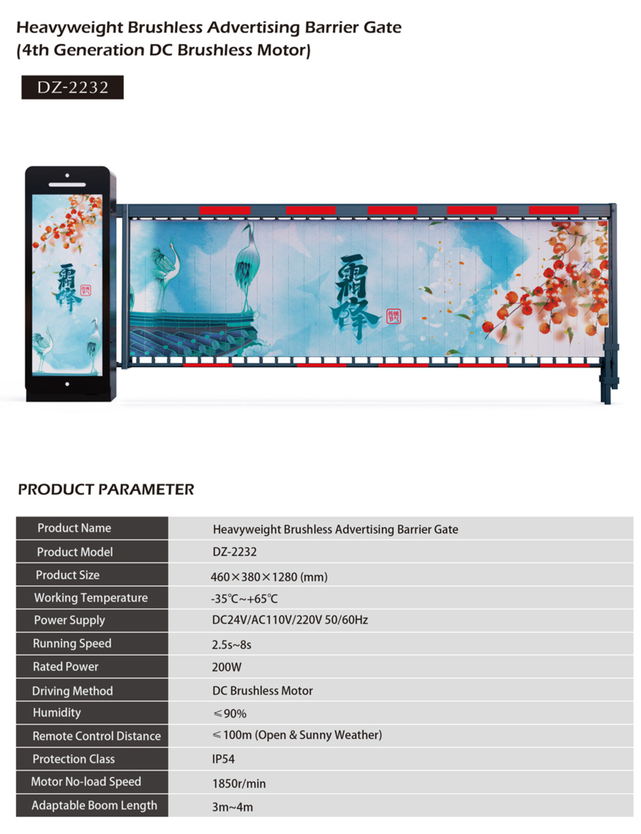

TECHNICAL PARAMETERS

Working temperature(motor): -30℃~+60℃

Rated Supply:DC24V; AC100~240V,50/60Hz

Running speed:3sec to 8Sec(adjustable)

Rated power:200W

Driving Method:DC brushless

Humidity:≥85%

Remote control distance:≤100M(open,sunny weather)

IP Degree:IP54

Motor No-load Speed:1850r/min

Max Boom Length:3M-4M

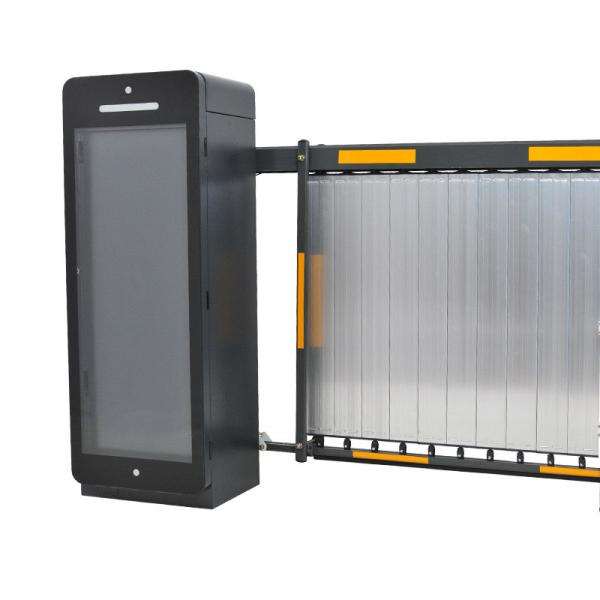

PRODUCT DESCRIPTION

This barrier gate is a typical mechatronics product with the characteristics of small volume, low noise, high efficiency, wide speed regulation and small steady-state speed error.

The fourth generation reducer is special for barrier gate,with optional multi speed ratio, stable operation, and the customized gear has higher transmission efficiency and high stability, which is more and more respected by the market. It adopts the latest mold design technology, die casting manufacturing technology, and brushless control speed regulation technology.

The arm can be interchanged quickly. Non clutch design is more convenient to use, and the machine core adopts gear transmission that speed is fast.The arc-shaped curved crank three-link structure makes the arm work fast and stable. Convenient maintenance and long service life.

MAIN FUNCTIONS AND FEATURES

1. The running speed can be adjusted from 3s to 8s.

2. Arm direction can be quickly interchanged

3. Open the barrier gate by motor wheel when power off, automatically reset after power on

4. Curved crank arm three- link movement structure, the operation is stable

5. Wireless remote control control open/close

6. Auto reverse function(force adjustable)

7. Infrared photocells connector is available

8. Loop detector connector is available.

9. Well-integrated with car parking system equipment,with wire control(must be switch signal)

10. Connector for traffic light(AC220V,power less than 40W)

11. Offering dry contact signal for car parking system(COM,NC,NO)

12. Auto-delay when closing(adjustable)

13. RS485 or CAN network communication interface(no need to install module)

14. Counting interface

15. 24V backup battery interface, Can be charged by using solar energy (optional)

TECHNICAL SPECIFICATIONS

Founded in 2002, SINOMATIC is a national high-tech enterprise specialized in R&D，production, and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including Access control turnstile, parking barrier gate/parking lock, Automatic gate opener, Anti-terrorism roadblock, etc., are suitable for the entry and exit management of vehicles and personnel such as government building, high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.

SINOMATIC has strong innovation and R&D capabilities, ultra-high technology, and craftsmanship, leading the industry into the era of intelligent variable speed interconnection.

As an innovative enterprise, SINOMATIC has always been committed to building an efficient and innovative R&D team to continuously promote technological and product innovation, improve the core competitiveness and market share of the enterprise.

At the same time, SINOMATIC attaches great importance to the construction of the talent team and focuses on introducing and cultivating high-quality R&D personnel in the field of research and development.

Technological innovation, product quality, and manufacturing capabilities are the driving force of SINOMATIC's continuous development. Brand, channels, and after-sales service are the pillars of SINOMATIC's long-term development. SINOMATIC products are sold all over the world. It has set up agency service outlets in more than 150 countries and regions including United States, Canada, UK, France, Germany, Russia, India, Singapore, Malaysia, Indonesia, Thailand, Turkey, Israel, UAE, Saudi Arabia, South Africa Nigeria, Kenya, etc.

With superior product quality and a high-quality after-sales service system, "SINOMATIC" has become a world-renowned brand of Access control products. SINOMATIC always keeps forging ahead, makes every product with hearts, and adheres to build trustworthy SINOMATIC quality and Chinese national brand in the world.
