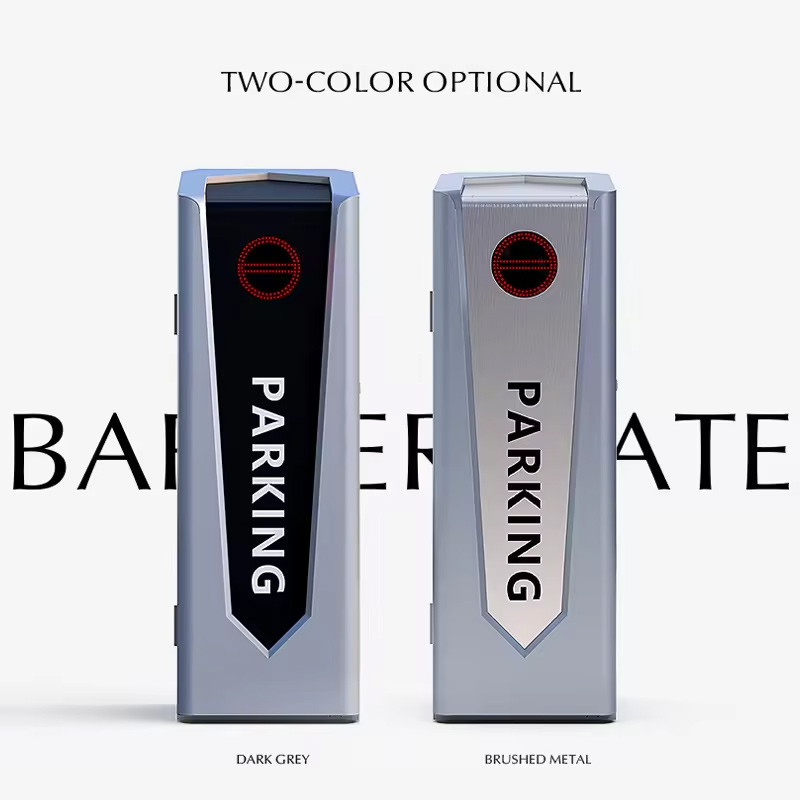

PRODUCT DESCRIPTION
This 2nd generation servo motor gate adopts integrated design and
mold manufacturing with international leading technology,compact
structure, high precision, high consistency and standardization,
and use planetary reducer transmission, high efficiency, long life,
no oil leakage, no blocking, low noise, the motor adopts 24V
permanent magnet rare earth synchronous servo motor, small size,
low power consumption, large torque, wide speed regulation, no
heat, small penetration, precise limit, etc., using digital signal
processor (DSP) As the control core, it can realize more complex
algorithms, realize network and intelligence, (IPM) internal
integrated drive circuit can detect faults and display fault codes
to quickly solve fault problems. The three-bar linkage design of
the machine core makes rapid rise and stable fall. Using solar
charging applications, it is suitable for unmanned occasions such
as railway crossings, fire passages, oil stations, mine tunnels,
etc., without electricity, and fully realizes automatic operation
control.
TECHNICAL SPECIFICATIONS
| Cabinet size | 340*340*1047(mm) | 340*340*1047(mm) |
| Working Temperature | -35℃~+65℃ | -35℃~+65℃ |
| Power Supply | AC110V/220V; DC24V | AC110V/220V; DC24V |
| Open/close Speed | 0.9Sec-8Sec(Adjustable) | 0.6Sec-6Sec(Adjustable) |
| Rated Power | 200W | 400W |
| Driving Method | Servo motor | Servo motor |
| Humidity | ≤90% | ≤90% |
| Remote Control Distance | ≤100m(open,sunny weather) | ≤100m(open,sunny weather) |
| Protection Grade | IP54 | IP54 |
| Motor No-load speed | 3000r/min | 3000r/min |
| Max Boom Length | 3m-6m | 2.5m |
FUNCTIONS
1. Operation speed can be adjusted.
2. Slow up and slow down can be adjusted.
3. The limit angle can be adjusted.
4. Left and right direction can be quickly interchanged.
5. The barrier arm can be manually operated in case of power
failure.
6. 418 frequency learning code anti-copy remote controller.
7.Infrared photocell sensor I/O signal input function.
8. Loop detector and radar I/O signal anti-collision signal input
function.
9. Up, down and stop I/O signal input function.
10. Counting (fleet) function.
11.LED light I/O signal output function.
12.Traffic light I/O signal output function.
13.Up and down in place, normally open and normally closed signal
output function.
14.RS485 communication output function.
15.Delay arm drop function.
16.Arm auto-reverse function.
17.Automatic lifting function when power is off (requires
additional power storage module).
18.I/O port single-key cycle up and down function.
19. Loop detector normally open and normally closed function.
20.One car passes through each signal to prevent toll evasion
function.
21.Anti-collision alarm function (requires additional alarm and
sensor).
22. Fire linkage signal input function.
23.The I/O port closes the signal input function.
24.24V storage battery input function.
Arm direction change instruction
Servo motor can change arm direction LEFT or RIGHT, 6 process
steps.
First step:Remove the original left side of the electronic control
board bracket and install it to the right;
Step 2: Remove the M8X20 hexagon socket screw that fixes the motor
and lift out the motor;
Step 3: Remove the fixing screw on the boom bracket (see Figure 1
);
Step 4: Use M14X150 screws to pull out the boom bracket (as shown
in Figure 2);
Step 5: Install the extracted bracket from the original left to the
right, or the original right to the left;
Step 6: Install back to the case, fix M8X20 hexagon socket screws,
and the left and right exchanges are completed, no need to adjust
other settings.
