PRODUCT DESCRIPTION

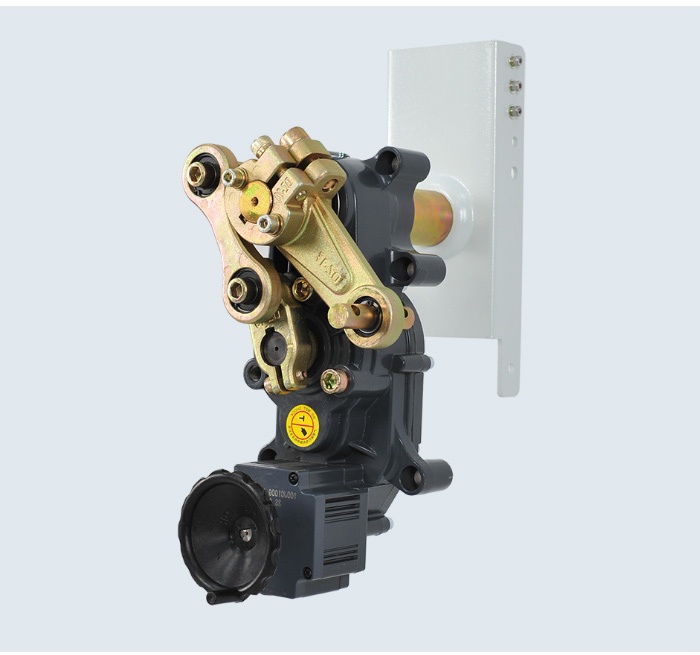

Thank you for purchasing the 5th generation brushless motor barrier gate. This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed regulation technology, left and right interchangeable quickly, no clutch design, more reliable quality, more convenient to use, the movement adopts two-stage worm gear drive, Three-curved connection rod structure, and the arm works fast and stable. Easy maintenance and long service life.

FUNCTIONS

• The running speed can be adjusted from 2.5s to 8s
• Direction can be quickly interchanged.
• Open the barrier gate by motor wheel when power off ,automatically reset after power on
• Curved crank arm three-link movement structure, the operation is stable
• Wireless remote control control open/close
• Auto reverse function(force adjustable)
• Infrared photocells connector is available
• Loop detector connector is available.
• Well-integrated with car parking system equipment,with wire control(must be switch signal)
• Connector for traffic light(AC220V,power less than 40W)
• Offering dry contact signal for car parking system(COM,NC,NO)
• Auto-delay when closing(adjustable)
• RS485 or CAN network communication interface(no need to install module)
• Counting interface
• 24V backup battery interface (optional)
• Arm open when power off (optional)
• Anti-collision alarm device(optional)

PRODUCT PARAMETERS

1. Working temperature(motor): -30℃~+60℃
2. Rated voltage:DC24V
3. Running speed:2.5s-6s
4. Rated current:9.5A
5. Rated power:150W
6. No-load speed:1850rpm
7. Rated speed:1400rpm
8. Rated torque:59.6N.m
9. Relative humidity:≥85%
10. Remote control distance:≤100M(in the open place)
11. IP Degree:IP54
12. Max length of arm:6M
