Brand Name : | SINOMATIC |
Model Number : | SN-FB04 |
Certification : | CE/ ISO |
Price : | negotiable |
Payment Terms : | T/T or western Union |
Supply Ability : | 1,000 pcs per month |
Delivery Time : | 5-10 working days after payment received |
PRODUCT DESCRIPTION

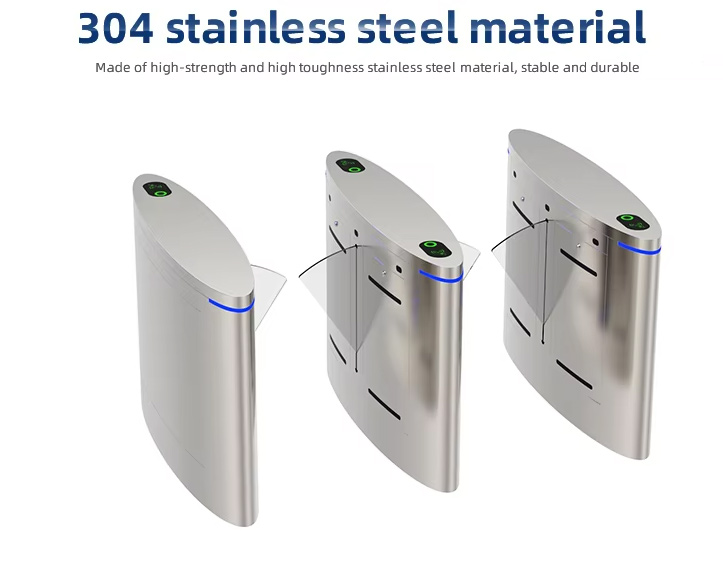

SINOMATIC automatic flap barrier is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors(with shelter)
PRODUCT Application
Sinomatic full automatic flap barrier gate are widely used in the following sites:
Main function and features
1. Can install Smart card reader and access controller to realize
access control function
2. Can be expanded to automatic identification system, realizing
function of access control, pedestrian flow control, attendance
check or fare collection.
3. Equipped with international standard electrical interface, can
be easily integrated with other R/W device, also can be controlled
and management through remote supervision computer
4. Equipped with a couple of infrared photocells, alarm at
unauthorized entry or tailgating attempts, together with
anti-strike function to protect pedestrian
5. LED gate direction indicator that displays the current
operational state to pedestrian. Green arrow for entry free, Red
cross for passage locked.
6. Can open the turnstile by two input signals (signals can be
input by access controller, button or other equipments)
7. Provide audible sound prompt and information display function.
8. The flaps will open automatically during power interruption, and
recover N/C mode after power on(optional)
9. Counting function. Flap closes after passing N pedestrians
continuously by reading cards N times correspondingly (N<=16)
10.Reversed passing alarm function, barrier will alarm if
pedestrian pass from opposite direction after reading the card.
11.The integrative terminal of face recognition uses the world's leading face detection and recognition algorithm, runs it in high performance embedded platform, coordinates 200W pixel camera, realizes face detection, face tracking, and face recognition
TECHNICIAL SPECIFICATIONS
Product Name | Flap barrier gate |
Model | SN-FB04 |
Material | stainless steel 304 (Cover:1.5mm Cabinet:1.2mm) |
Size | 1200*300*980mm |
Passage width | 600mm |
Passage direction | Unidirectional/bi-directional |
Pass rate | 30 persons/min |
Infrared Sensor | 3 pairs |
Power input | AC100-240V,50/60Hz; DC24V |
Working voltage | 24V |
Working humidity | ≤95% |
Working temperaturer | -30℃-+70℃ |
working enviroment | Indoor/outdoor |
Communitcation interface | RS232,RS485,TCP/IP |
Access control system | ID/IC card ,fingerprint,face recognition,Barcode/QR code,phone
app,ESD system,visitor system,etc |
![]() |
