PRODUCT DESCRIPTION

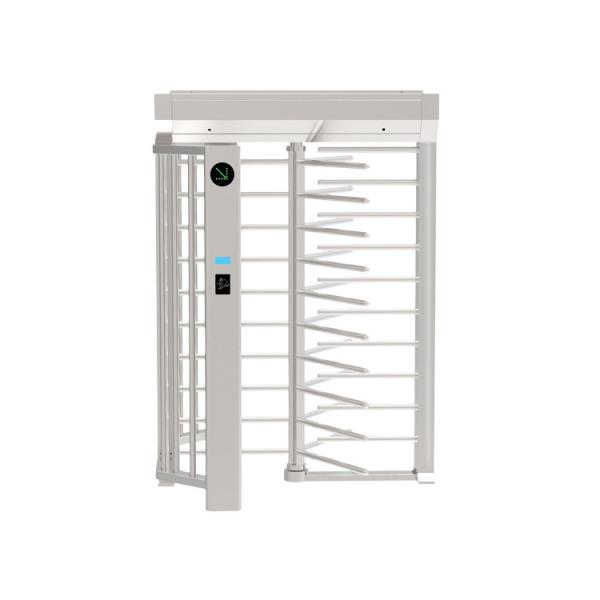

This semi auto stainless steel single lane full-height turnstile offer maximum access security control. Users are not able to crawl underneath or climb over to gain unauthorized access into premise. Full height turnstile can effective control single pass through each time. It is built with high quality material for advanced reliability and vandal resistance, suitable for outdoor usage with high people traffic environment. The semi auto turnstile operation is based on solenoid lock that allows blocking rotation direction.

Application

It’s suitable for indoor and outdoor application. They are optimized economical

solution for factory, colleges, commercial building, stadium, game park, prison and etc.

PRODUCT DETAILS

A robust and tough gate is important especially when you use it outdoor. An intruder might attempt to exploit a security loophole or vandalize the gate to gain unauthorized access when it is unattended by the guard. What if you can solve all these concerns and still without the expensive cost of a European brand?

How to cheat a full height turnstile?
By stopping the arm just before it is locked back after the first authorized person exited, the intruder can reverse the rotation allowing himself to enter and pass through. The worse news is that this loophole can be repeatedly used after single valid access to allow UNLIMITED unauthorized entry since there is no guard at the site to stop it. SINOMATIC SLAR (single-level anti-reverse) lock design can prevent this loophole in our full height turnstile.

Work harder and longer for you
The additional heavy-duty shock absorber in our design effectively reduces impact and vibration due to rotational momentum during operation to cut down mechanical wear thus reducing your maintenance cost.

Stay secure while maintaining safety
You can manually unlock the turnstile during power failure to allow free arm rotation for a fast escape.

Lower cost transportation
The biggest dimension box is the tripod arm. Our arm is split into separate 3 pieces to lower transportation cost. You can easily assemble it back at the site.

Functions & Features

Features

• Minimum Maintenance, The housing is made of high quality stainless steel, and all the internal parts are with anti-rust and anti-septic treatment to achieve high level of durability.
• Convenience, The LED light indicator make it convenient for users to know the passage direction. It can be configured to indicate with direction passage is use.
• Easy Integration, Easy integration with any third party access control or ticketing interface by external mounting or built-in.
• Durable, The housing is made of high quality 304 stainless steel for long lasting and vandal resistance.When the arm is locked, it will be able to sustain resistant force 70kg to restrain from unauthorized force open attempt. Suitable for both indoor and outdoor environment.
• Secure, Anti-reverse smart locking system to prevent unauthorized passed without access card by pushing through the arm. It only allows one person pass through at a time with passage rate of about 30 persons/min.
• Anti Tailgating, Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back after arm has been rotated more than half.Therefore current user can only finish the rotation to pass through or reverse the rotation to exit. Either way, it will not allow second person to pass through again.
• Safety When Power Failure, Gate will be unlocked during power failure. It will automatic release key knob to unlock the arm during power failure.
• Memory function. Memory will record the sequence of passing (same or opposite direction). Passing request will be executed according to the sequence recorded.
