FUNCTION AND FEATURES

1. NO SENSOR&LIMIT SWITCH
Innovative design which doesn’t need any sensor and limit switch.All control by SFMCU drive unit precisely.
Four main parts only, mechanical, motor, control unit, power supply.

2. MAINTENENCE FREE
DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon
brush in a certain time. Galvanized and powder coated parts are anti-rust ensure long termusage.
And no other smaller parts need to be maintain too.

3. 24/7 CONTINUS OPERATION
With a very smooth and quiet motorized drive mechanism, Open
and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.

4. SPEED ADJUSTABLE
Our DC servo barrier gate allows you to set opening and closingspeed according to requirements. Shorter arm,
the faster speed can be set.

5. AUTO-REVERSE FUNCTION
When arm falling and meets obstacles, arm will auto reverse to prevent further damages.

6. MULTIPLE INTERFACES
* Wire Control Signal Input(open&close&stop)
*Infrared Photocells
*Loop Detector
* R&G Light signal (Up&Down Limit signal output optional),
*can use for counting purpose also
*Arm Presence Detection(Optional)
* RS485 Communication(Optional)
* More If Required

7. EASY INTEGRATION
Access Reader or Push button or remote controller can be used totrigger the barrier gate to open via a simply dry contact signal.After delay timer elapsed, barrier gate will close automatically byitself in a certain time(optional function)

8. USER FRIENDLY
Motorized arms provide comfortable passage while maintaining ahigh level and high density of car flow management, such as in toll gate.

9. AUTO-RECOVERY
When power off, barrier arm can be lifted up by manual for a freeexit. When power supply is restored, Barrier gate will automatically return to close position.

10. Auto Testing Mode
Control board can set auto testing mode

PRODUCT DESCRIPTION

SINOMATIC DC Brushless Servo motorzied barrier gates model K10, the newly designed, maintenance free with MicroDrive unit offers 100% more torque, 100% duty, are the fastest toll barriers available with an opening time as fast as 0.6 seconds. Opening speed is adjustable from 0.6s to 6s or more.

This Barrier use innovative technology design and manufactured with precision machinery to guarantee satisfaction in quality and reliability for years to come. The barrier has been lab tested for more than 10 millions opening / closing and still without any degrade in performance.

This barrier redefines performance in non-stop toll applications. It is the ideal solution for very high frequented toll stations providing great reliability and sustainability as well as comprehensive functionality.

MULTIPLE INTERFACES

* Wire Control Signal Input(open & close & stop)

*Infrared Photocells

*Loop Detector

* R&G Light signal (Up&Down Limit signal output optional),

*can use for counting purpose also

*Arm Presence Detection(Optional)

* RS485 Communication(Optional)

* More If Required

TECHNICAL SPECIFICATIONS

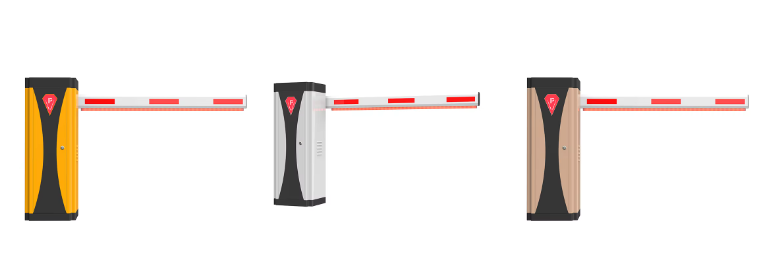

OPTIONAL HOUSING COLOR

Boom horizontal and vertical fine adjustment
1 Horizontal adjustment:

Power off first. And loosen the two screws on balance rotating arm a little but not totally loosed, then rotate barrier arm to
make the active swing arm to mechanical limit position. In this situation, keep the arm in horizontal status, and fasten the two screws on balance rotating arm.

2 Vertical adjustment
After the above1 finished, power on(make sure arm installed), after system started, press ‘UP’ button to check the vertical position. If not, please
follow menu settings to adjust DP10. For example, barrier arm not full 90 degrees open, increase the value of DP10. If open more than 90
degrees, decrease the value of DP10 too, setting details please refer to appendix VI.
