PRODUCT DESCRIPTION

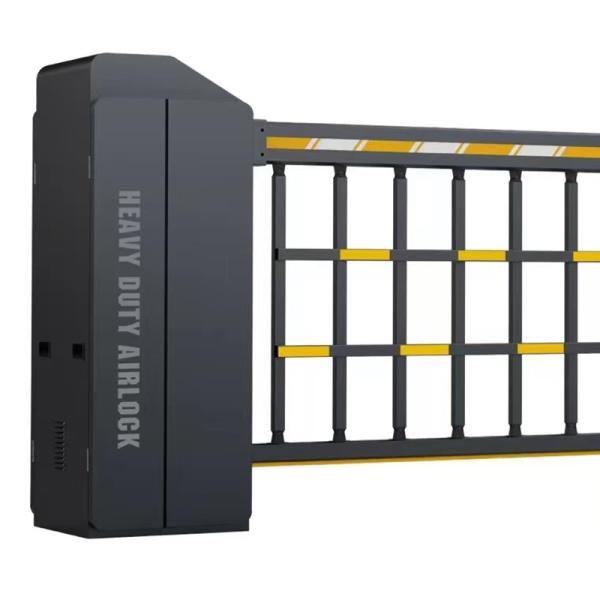

Heavy Duty Boom Barrier refers to a robust and sturdy type of barrier used for traffic control and access management. It is commonly employed at locations such as parking lots and entrances to important facilities. This type of boom barrier is designed to withstand frequent use and endure significant impact. Typically made of steel or other durable materials, it possesses features such as compression resistance, shock resistance, and corrosion resistance. Moreover, it is equipped with a powerful motor and gear transmission system to ensure fast, stable, and reliable operation of the boom arm.

The working principle of a heavy-duty boom barrier involves the activation of an opening command by an operator or an automated license plate recognition system when a vehicle needs to pass. The boom arm quickly lifts or lowers to allow vehicle access. When there is no vehicle passing through, the boom arm remains closed, effectively restricting unauthorized vehicle entry.

In addition to the fundamental lifting and lowering function, some heavy-duty boom barriers are equipped with additional safety features such as collision prevention devices, infrared detectors, and anti-tampering systems to enhance security and protection. In summary, a heavy-duty boom barrier is a reliable, secure, and durable device that plays a vital role in traffic control and access management.

TECHNICAL SPECIFICATIONS

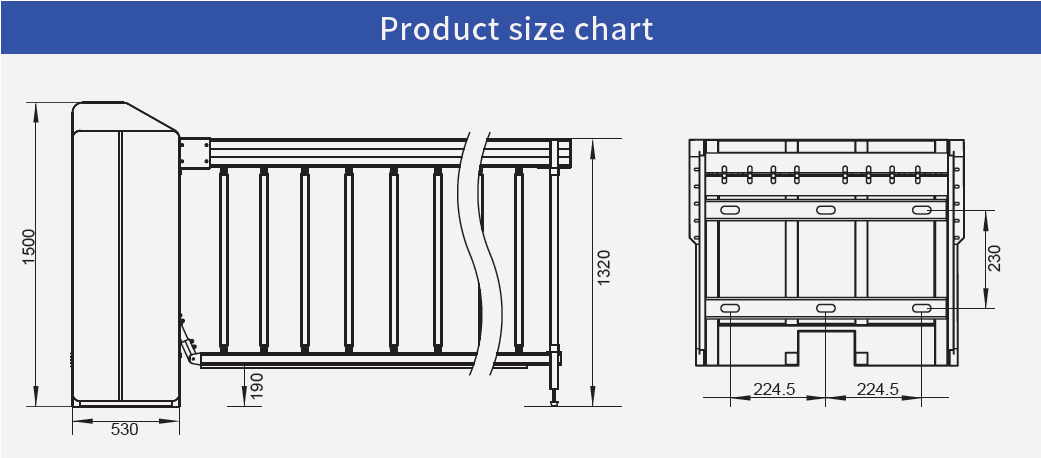

*Housing dimension: 1500×530×645mm

*Housing color: Sand black

*Motor type : BLDC Motor

*Motor Power : 200W

*Total length : < 6m (include housing)

*Boom useful length: ≤ 5.47m

*Operation Speed : 4s-8s

*Operating voltage : DC24V

*Operating Temperature : -30℃-60℃

*Insulation level: F

*Protection grade: IP54

FUNCTION AND FEATURES

1. Safety: Powered by a 24V DC power supply to ensure personal safety.

2. Adjustable speed: The lifting and lowering speed of the boom can be independently adjusted.

3. Stable operation: The movement adopts a DC brushless motor, which has a large output torque and small size. The speed can be adjusted arbitrarily through the controller. When the falling or lifting boom is in place, deceleration buffering is achieved, making the boom smoothly in place.

4. Quiet: The working noise is below 50db;

5. Material: The main body of the movement is made of aluminum alloy material, manufactured by die-casting technology, with reliable mechanical strength, beautiful appearance, precise size, and good heat dissipation.

6. Multiple protections: motor overcurrent, overload, short circuit protection, motor fault protection, power reverse connection protection;

7. Supports external remote control input;

8. Supports open position, close position, and status dry contact output, and can be controlled by external light strips or indicator lights to output the current status;

9. Supports RS232/RS485 serial communication

10. Support opening counting function and unmanned automatic closing function

11. Support high sensitivity anti smashing and rebound protection function

PRODUCT PARAMETERS
