PRODUCT DESCRIPTION

This barrier gate consists of four parts: Housing, transmission mechanism, control unit, and boom. It’s no need to distinguishes between left and right directions. It’s is used in application scenarios for vehicle access management in residential areas, commercial properties, enterprises and institutions. This barrier gate is a heavy-duty type with fence boom.

Working environment parameters:

Housing dimension: 530*487*1400mm

Motor type: BLDC Motor

Motor Power: 180W

Total length: 6m (include housing)

Boom useful length: ≤ 5.47m

Opening/Closing time: 4s~9s

Working voltage: DC24V

Working temperature: -35 ℃~+80 ℃

Switching power supply input voltage: AC200~240V

Controller input voltage: DC24V ± 10% 7.5A

Relative humidity: 30% to 80% (no condensation)

Remote control distance: ≥ 30 meters

Insulation level: F

Protection level: IP54

FUNCTION AND FEATURES

1. Arm grip structure

The connecting rod transmission has better operating strength, stability and reliability

2. Turbine vortex rod and gear structure

Implement power-off self-locking function to effectively prevent falling booms from hitting the vehicle

3. Planetary gear structure

Standard design, with greater and more stable motor power

4. Mechanical limit triangle plate

Adjustable speed for smoother rising and falling

5. Motor drive, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to more than 2.5 million times, spring life of 400,000 times.

6. The entire series comes standard with a rebound function when encountering obstacles, which will automatically rebound when the boom is obstructed during the descent process.

7. Support external radar, coil, infrared anti-smash function, built-in DC 12V power supply output, can be used for external radar power supply.

8. Support RS485 communication or RS485 parallel connection

PRODUCT PARAMETERS

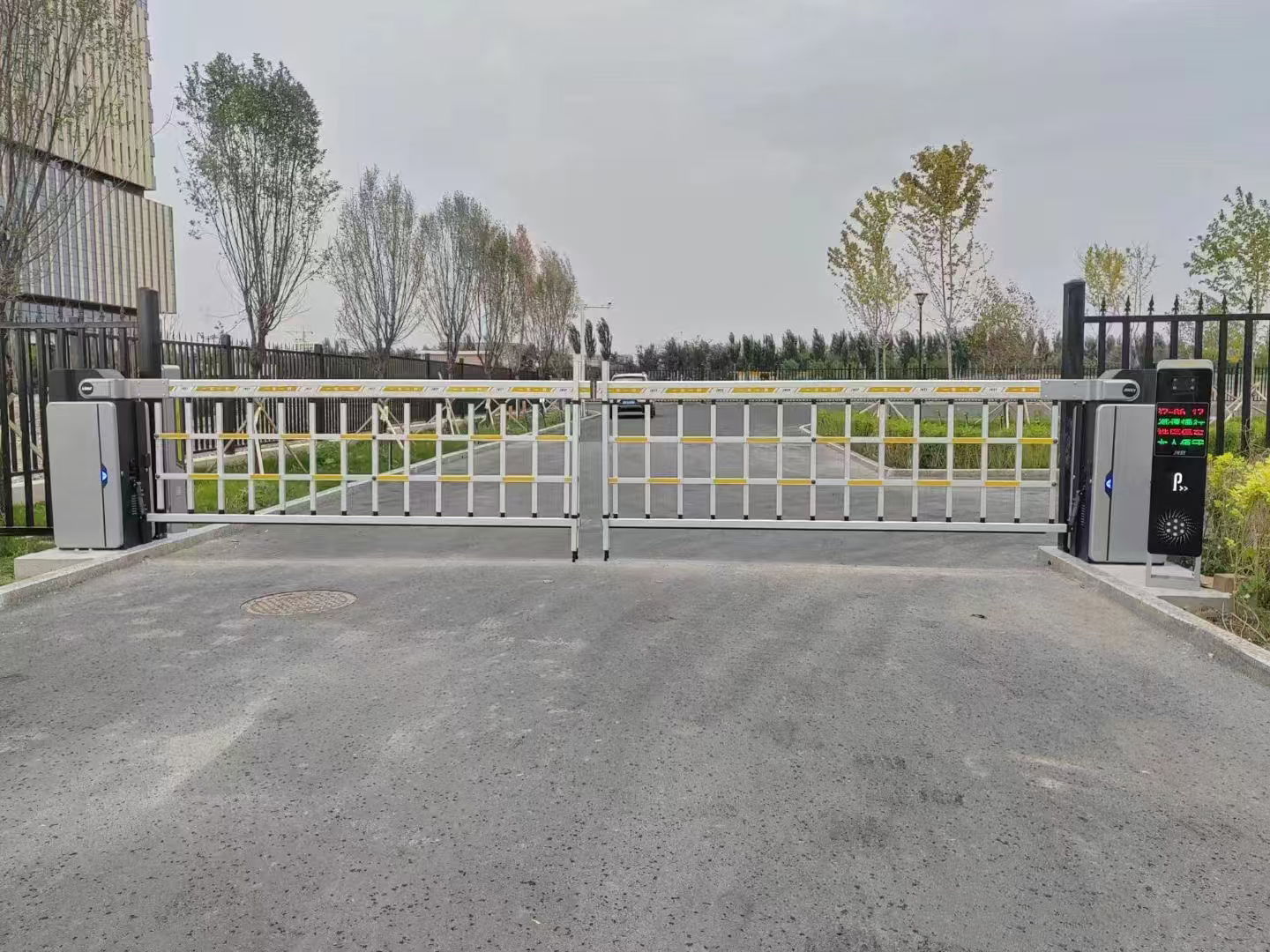

CASE REFERENCE
