PRODUCT DESCRIPTION
SINOMATIC ultra-long arm barrier gate model DZ-2307 is suitable for
railway, railway-road mixed traffic control crossings, port docks,
and other occasions. It uses a double-arm standard design to meet
the length requirements of large intersections, and it solves the
technical problems of insufficient power, bending and deformation
of long arms, insufficient strength, and poor wind resistance.
Technical Parameters
Working temperature(motor): -30℃~+60℃
Rated Supply:24/100/240VAC,50/60Hz
Running speed:3sec to 16sec(adjustable)
Rated power:250W
Driving Method:DC Brushless motor
Humidity:≥90%
Remote control distance:≤100M(open,sunny weather)
IP Degree:IP54
Motor No-load Speed:1850r/min
Max Boom Length:6M-12M
ADVANCED FEATURES
1. Advanced mechatronics Side-mounted design concept structure
compact, quickly assembly, easy maintenance.
2. Molding production: high precision, fast efficiency and
guaranteed quality.
3. Advanced fourth level gear transmission design concept: high
precision. long lifetime, no blocking. no oil leakage, large
torque, low noise .can normally operation at the temperature of
-35°C etc.
4. DC brushless motor design, low consumption, high efficiency, no
overheat, wide speed adjustment, make arm open and close fast and
stable.
5. Hall limit: automatically detects the limit when power on
without debugging. high precision. detecting the motor speed at all
times and running at constant and stable speed 6.Curved triple
connecting rod structure design concept makes arm in vertical and
horizontal position. easy to adjust the arm balance, avoid to lift
arm violently.
7.Arm direction quickly interchanged: interchanged according to
different directions on construction site. reduce inventory and
capital pressure.
8.Advanced DC brushless controller: use integrated chip drive, fast
processing speed, large memory, good control effect, powerful
function, high degree of automation; 24V low voltage power supply,
adapt to global voltage, safe and reliable.
FUNCTIONS
1.Operation speed can be adjusted.
2. Slow up and slow down can be adjusted.
3. The limit angle can be adjusted.
4. Left and right direction can be quickly interchanged.
5.The barrier arm can be manually operated in case of power
failure.
6.418 frequency learning code anti-copy remote controller.
7.Infrared photocell sensor I/O signal input function.
8.Loop detector and radar I/O signal anti-collision signal input
function.
9.Up,down and stop I/O signal input function.
10,Counting (fleet) function.
11.LED light lo signal output function.
12.Traffic light lo signal output function.
13.Up and down in place, normally open and normally closed signal
output function.
14.RS485 communication output function.
15. Delay arm drop function.
16. Arm auto-reverse function.
17.Automatic lifting function when power is off (requires
additional power storage module).
18, 10 port single-key cycle up and down function.
19.Loop detector normally open and normally closed function.
21.Anti-collision alarm function (requires additional fee,
installation of alarm and sensor).
22.Fire linkage signal input function.
23.The l0 port closes the signal input function.
24. 24V storage battery input function.
TECHNICIAL PARAMETERS
| Product Name | Ultra long arm barrier gate |
| Product Model | DZ-2307 |
| Product Size | 350x310x1180(mm) |
| Working Temperature | -35℃~+65℃ |
| Power Supply | DC24V/AC110V/220V 50/60Hz |
| Running Speed | 3s~16s |
| Rated Power | 250W |
| Driving Method | DC Brush-less Motor |
| Humidity | <90% |
| Remote Control Distance | ≤100m (Open & Sunny Weather) |
| Protection Class | IP54 |
| Motor No-load Speed | 1850r/min |
| Adaptable Boom Length | 6m~12m |

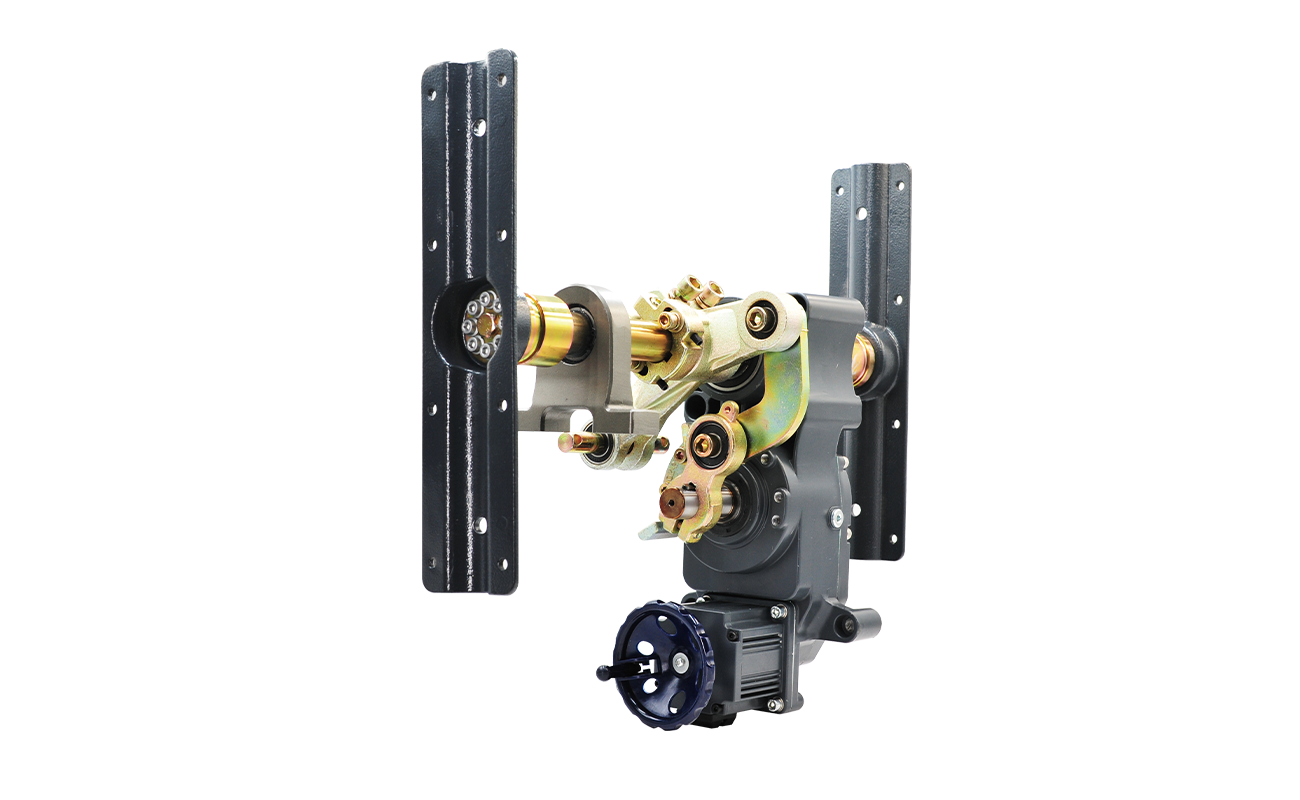

PRODUCT MECHANISM
